3/8x22-16 x 1 3/4x22 Coarse Thread Hex Bolt Low Carbon Steel Hot Dip Galvanized Pk 800 D62341
Sale price
$20.95
Regular price $97.97
Skip to product information

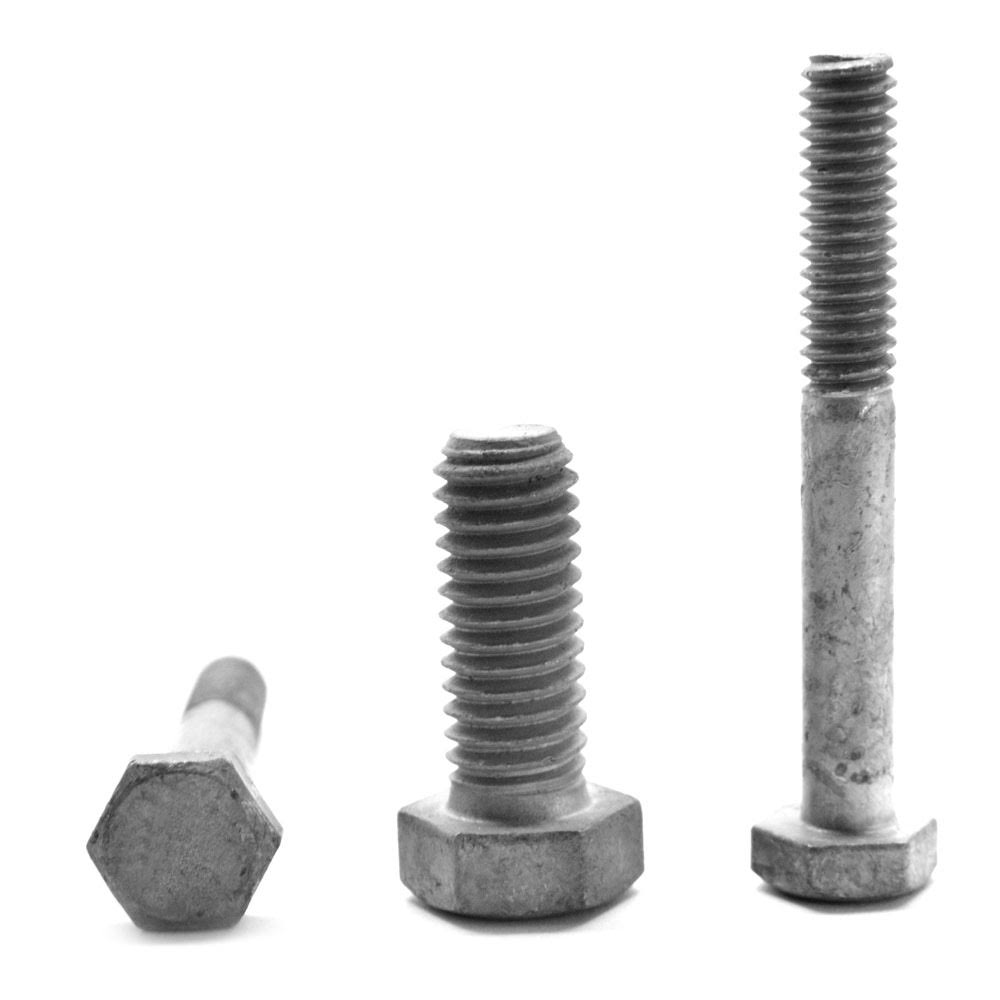

PICTURES ARE REPRESENTATIVE OF ITEM, BUT ARE NOT OF THE ACTUAL ITEM. Product dimensions, finish, head markings, thread length, stamping shape or forging shape, etc., may differ from picture. Products are guaranteed to meet the specifications to which they are manufactured. Specifications allow for tolerances in dimension and shape, which can vary from lot to lot. PRODUCT SPECIFICATIONS Part #: 0000-117455 Fastener Type: Hex Bolt Size Description: 3/8'-16 x 1 3/4' (PT) Diameter/Nominal Size: 3/8' Length: 1 3/4' Wrench Size/Across Flats: 9/16' (0.551-0.562') Width Across Corners: 0.628-0.650' Head Height: 15/64' (0.226-0.243') Thread Pitch: 16 Thread Pitch Type: Coarse Thread Direction: Right Thread Coverage: Partial System of Measurement: Inch Grade: A (2) Material: Low Carbon Steel Finish: Hot Dip Galvanized Head Type: Hex Drive Type: External Hex Standards Met: A307 Average Piece Weight: 0.0642600 lbs. Hexagonal heads and machine threads used with a nut or in a tapped hole; also known as or machine bolts. Hex bolts are similar to hex cap screws. What is the difference between a hex cap screw and a hex bolt? A hex cap screw has tighter tolerances on the body dimensions and features a chamfered end and a washer face under the bolt head. A hex cap screw is often called a finished hex bolt. Hex bolts have a flat end and lack the washer face under the head. Hex bolts may have an undersize body in longer lengths.
3/8x22-16 x 1 3/4x22 Coarse Thread Hex Bolt Low Carbon Steel Hot Dip Galvanized Pk 800 D62341
Sale price
$20.95
Regular price $97.97
Shipping calculated at checkout.
